Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

Name: Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti Corrosive
Brand: Chengdu Yongyi
Price: 500 USD

China Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive wholesale

Brand Name : Chengdu Yongyi

Model Number : DCS

Certification : ISO9001

Place of Origin : Sichuan

MOQ : 1 Set

Price : USD500-5000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 300 Sets/Month

Delivery Time : 25 working days after receiveing advance payment

Packaging Details : Export wooden box packaging

Material : New Carbon Fiber Composite Material

Flow : 30 ~ 400 m3/h

Head : 15 ~ 50m

Warranty : One Year

Feature : High Corrosion Resistance Material

Temperature : Within 150degrees Celsius

Type : Horizontal

Color : Customer Specifications

Contact Now

Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

Benifits of This Pump

Single-stage single suction horizontal centrifugal pump
Closed impeller, twisted blades, all heavy-duty design, with good hydraulic performance
Flow passage components are all made of new carbon fiber composite materials

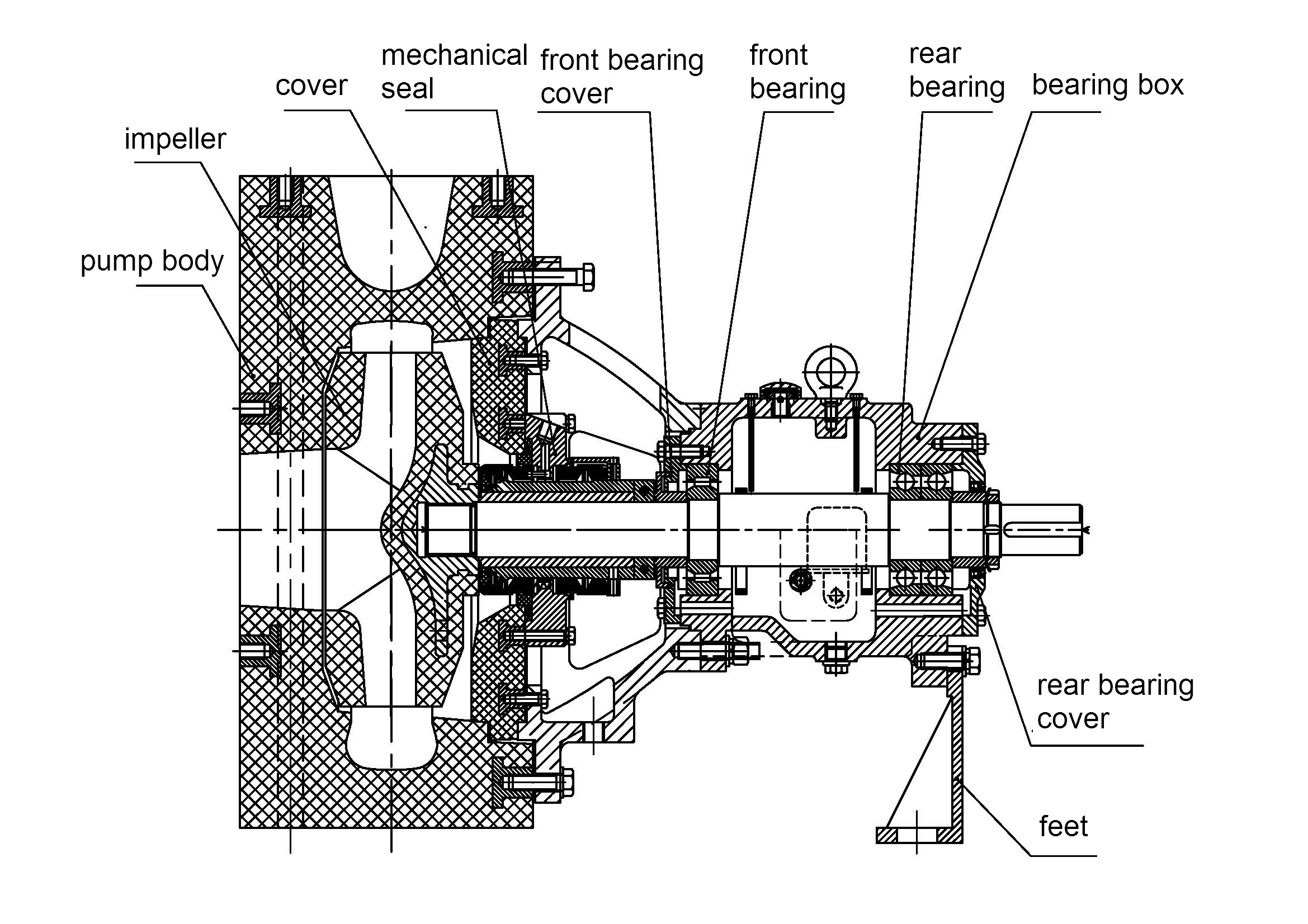

Structure

Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

Material Description

Carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1).

This material has excellent wear resistance and is free from almost all chemical corrosion, under certain conditions the material can be used at temperatures of up to 150 degrees.

Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

1. high corrosion resistance and wear resistance

2. no electrochemical corrosion: new carbon fiber composite materials with few free electrons on the surface, so there is no electrochemical corrosion

3. high hardness and has high wear resistance.

Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

Parameter Data

	Model: DCS-seriescarbon fiber composite material pump
	Discharge Size:40mm~125mm
	Inlet Size:50mm~150mm
	Capacity:30～400m³/h
	Head:15～50m
	Maximal Efficiency:65%
	NPSH: 1.4m~3.5m
	Allowable Max Motor Power:280 kw
Impeller	Allowed Max Particle Size:20 mm
Vanes:5/6	Seal Type:mechanical seal/dynamic seal/packing seal
Type:closed/ half open	Pump Weight:up to 1500kg
Material:Metal (according to working conditions )	RPM:1450r/min

Application

carry high-temperature, highly-corrosive and high-wear mediators which can’t be carried by metal pump and non-metal pump.
in chemical industry, metallurgy, mining, electricity, coal, paper, energy saving and environmental protection industries
preferred alternatives to advanced alloy metal pump and non-metal pump)

Horizontal Carbon Fiber Chemical Pump Single Stage Motor Drive Anti - Corrosive

Product Picture
